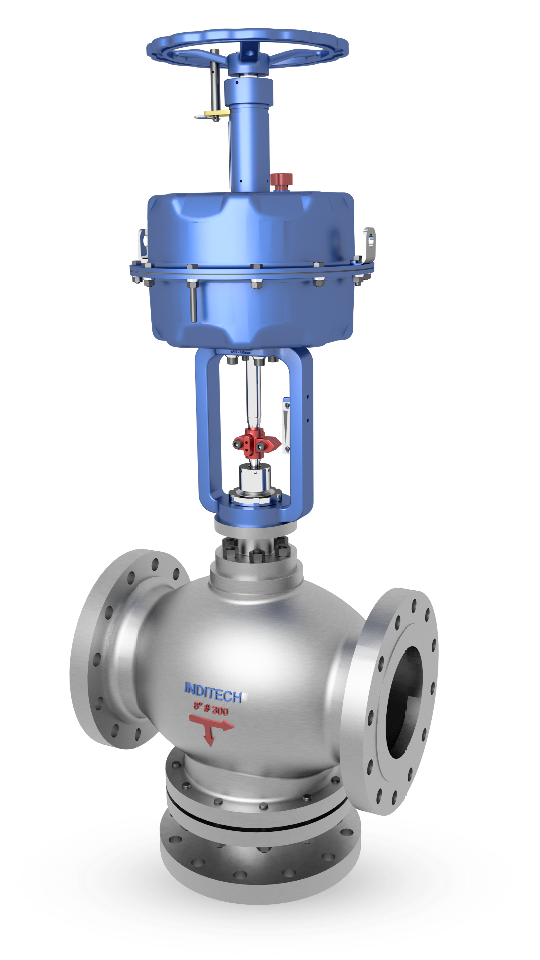

3-way Globe Valves

Overview

3-Way Mastery: Precision Control in Every Direction

3-Way Valves feature three ports: either one inlet and two outlets or one outlet and two inlets. This unique configuration enables them to perform a variety of functions. 3-Way Control Valves provide dynamic control options. Users can divert, mix or isolate flows based on specific operational requirements. A 3-way diverting valve splits a common fluid stream into two outlet ports. A 3-way mixing valve combines two fluid streams and discharges the mixed fluid to a common outlet port.

This valve is ideally suited for applications involving thermic fluid, water, oils & other industrial fluids. IndiTech’s simple valve construction ensures reliable performance and easy in-line maintenance.

Get versatility and control with our energy-efficient 3-Way Globe Valves.

Download Brochure
Get in Touch

Applications

Steam Power Generation:

3-way globe valves are used to regulate the feed water flow to the boiler drum by diverting the excess flow back to the boiler feed pump through the recirculation line.

Temperature Control Systems:

3-way globe valves are used to modulate hot and cold fluid flow in applications such as thermic fluid systems, dryers, HVAC systems, and heat exchangers. Thus playing a key role in accurate temperature control.

Process Industries:

3-way globe valves are crucial in return condensate lines for CCDS (Condensate Contamination Detection) systems across various process industries.

Food & Beverages:

3-way globe valves are also used to mix or blend different ingredients in meticulously designed food and beverage formulations.

Technical Data

INDITECH SERIES

220

SIZE

NPS 1 To NPS 24 (DN25 To DN600)

PRESSURE RATING

ANSI CL150 To CL2500

DESIGN STANDARD

ASME B16.34; ISA 75.01.01

BODY MOC

A216 WCB; A217 WC6/WC9; A351 CF8M

END CONNECTIONS

Flanged/Socket Weld/Butt Weld

LEAKAGE CLASS

Class IV/Class V

OPERATION

Pneumatic/Motorised/Manual

DUTY

Control/On-Off

TYPES

Diverting/Mixing

Features

Streamlined valve body design optimised to handle high-capacity flows
Vibration elimination through trim provided with both top guiding & seat guiding
Slotted plug with inherent linear flow characteristics for Regulating Control Duty
Easy in-line maintenance facilitated by both top and bottom entry access to valve internals
Disk type plug for On-Off Duty
Modular design with interchangeable parts for both mixing and dividing designs
